8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON

Name: 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q212S OMRON
Brand: Omron
Price: 2.00 USD

Buy cheap 8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON product

Brand Name : Omron

Model Number : G4Q-212S

Packaging Details : Carton packaging

Supply Ability : 10pc/per week

Price : $2.00 - $29.00/Pieces

Place of Origin : China/Japan

MOQ : 1/pc

Payment Terms : T/T, western union

Quality : new and original

Warrenty : one year

Delivery Detail : 3-5 working days after payment

Package : Original Package

Port : Guangdong Shenzhen Dongguan

Contact Now

High performance OMRON RELAYS G4Q-212S at reasonable prices

Product Details

8 Pin DPDT Ratchet Relay

2 pole plug-in relay, each contact in the contact mechanism performs alternate make-break operation at each pulse input and is thus ideal for alternate operation or transfer/switching operation of a motor.

Contact Rating 5A@ 220 V ac/ 24 V dc
Unique ratchet mechanism assures positive alternate transfer/switching operation
Minimum pulse application = 100 ms
Quick response speed allows continuous use of the relay
Dielectric strength of 2000 V ac
Low power consumption (a.c. approx. 6.4 VA, d.c. approx. 3.9 W)
Electrical Life: 5 x 105 steps (min)
Mechanical Life: 5 x 106 steps (min)
Max Switch Power: 1100 VA, 250 V ac; 120 W, 250 V dc
Operating temperature range -10 to +55°C

8 Pin Ratchet Dpdt Relay 24V High Performance G4Q-212S OMRON

Approvals

7777

Specifications

Attribute	Value
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Maximum Switching Power DC	120 W

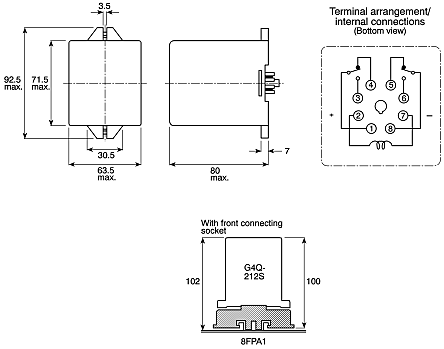

Length	92.5mm
Depth	63.5mm
Height	80mm
Dimensions	92.5 x 63.5 x 80mm
Terminal Type	Plug In
Number of Poles	2
Application	Power
Switching Current	5A
Isolation Coil To Contact	2kV
Maximum Operating Temperature	+55°C
Contact Material	Silver
Operating Temperature Range	-10 → +55°C
Coil Resistance	37.5 Ω
Maximum Switching Power AC	1.1 kVA
Coil Power	3.9W
Minimum Operating Temperature	-10°C
